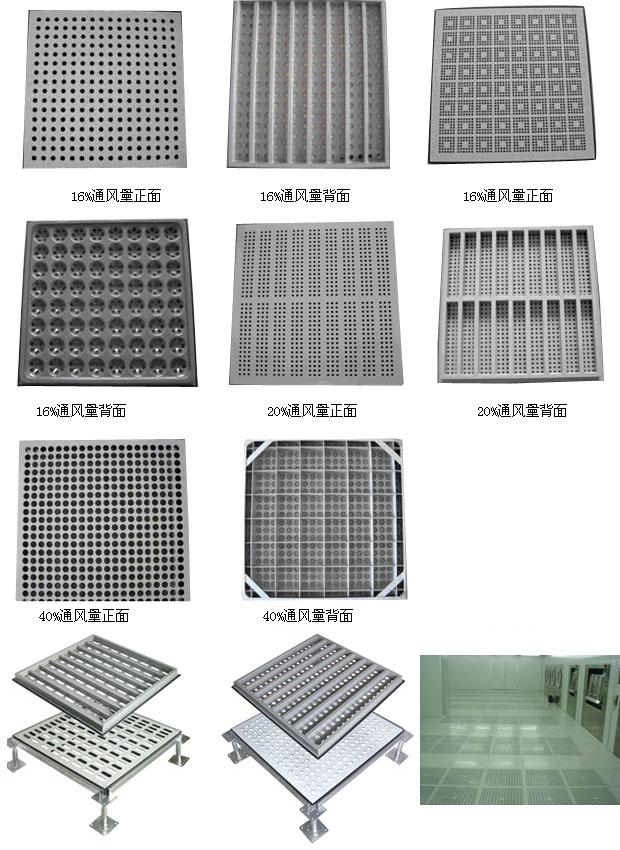

Anti - static ventilation floor can meet the requirements of different rooms and clean rooms. The floor can be interchangeable with other floor. Exquisite workmanship, accurate chamfer hole, A1 grade building materials (non flammable substances), can be recycled, electrostatic dissipation good performance. Full steel, and the surface of the HPL or PVC punching veneer; the panel and choose Shanghai Baosteel SPCC hard plate pressure punching, at the bottom of the square tube manual welding, belonging to the domestic initiative. Imports of electrostatic spray, surrounded by a conductive edge fillet edge and bearing beam, selection of pipe molding, wire rod can be arbitrary regulation height.
Product application:
All kinds of computer room, network communication room, monitoring command center, electronic workshop clean room, clean room, clean room, etc., and have the occasion to prevent static and ventilation requirements.
|
International Model |
Specifications(mm) |
Fire performance |
Concentrated load |
Impact load |
limit load |
Uniform load |
Rolling load(N) | |||
| LB | N | KG | (N) | (N) | (N/m2) | 10times |
100000 times |
|||
| ZW220 | 600×600 | A | ≥220 | ≥980 | ≥100 | ≥148 | ≥2940 | ≥4860 | 979 | 783 |
| ZW440 | 600×600 | A | ≥440 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9720 | 1958 | 1566 |
| ZW662 | 600×600 | A | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥12500 | 2946 | 2356 |
| ZW1000 | 600×600 | A | ≥1000 | ≥4450 | ≥453 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
| ZW1250 | 600×600 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
