Function characteristic:
1, the base material purity >85%, has reached the international standard;
2, flame retardant, non slip, noise, dust, anti pollution, chemical corrosion;
3, the surface of good wear resistance, no bubble, no de;
4, all around support, structural strength, strong bearing pressure;
5, high grade environmental protection is beautiful, the decoration effect is good, the installation is simple, the exchange is strong.

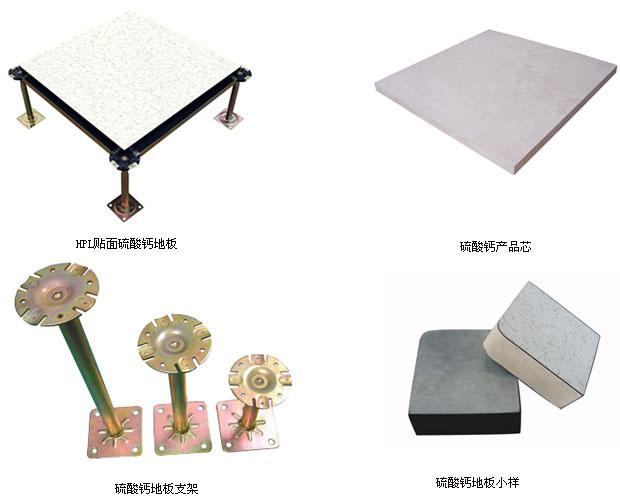

Structure
1, the calcium sulfate floor uses non-toxic without bleaching of plant fiber as reinforcement material, combined with the solidification of calcium sulfate crystal, and after the pulse pressing process to produce. Because of its environmental protection, fire protection, high strength, flat, and many other advantages, has become the most widely used in the overhead floor of the household materials.
2, the completion of the standard height: 100mm-1000mm, the other can be customized.
Product application:
Applies to all kinds of 5A intelligent building, 5A grade office buildings, all kinds of computer room and overhead requirements, network cabling.
Model and technical parameters:
|
International Model |
Specifications(mm) |
Fire performance |
Concentrated load |
Impact load |
limit load |
Uniform load |
Rolling load(N) | |||
| LB | N | KG | (N) | (N) | (N/m2) | 10times |
100000 times |
|||
| ZW800 | 600x600x32 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
| ZW1000 | 600x600x32 | A | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
| ZW1250 | 600x600x32 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
| ZW1500 | 600x600x32 | A | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
Standard frame:
| Finish height(mm) | Diameter(mm) | up-regulation（mm） | down regulation(mm) |
| ≦600 | ф25 | 20 | 10 |
| 700~900 | ф32 | 20 | 10 |
| 1000~1500 | ф45 | 20 | 10 |
Other height can be customized
Standard specification: 570x21x32mm
